Powerful ST-200 Water Well Drilling Rig With High Efficiency

Name: Powerful ST200 Water Well Drilling Rig With High Efficiency
Brand: Shitan
Price: 35000 USD

Quality Powerful ST-200 Water Well Drilling Rig With High Efficiency for sale

Brand Name : Shitan

Model Number : ST-200

Place of Origin : Hebei China

MOQ : 1 set

Price : 35000 USD-45000 USD

Payment Terms : T/T, Western Union

Supply Ability : 2000 sets/month

Delivery Time : 15-20 days

Packaging Details : Wooden box

Product Name : 200 type tire type water well drilling rig

Drilling method : Mud pump drilling and air compressor drilling

Drilling diameter : Φ105-Φ350mm

Drilling depth : 200m

One push length : 3M

Drilling pipe diameter : Φ76mm, Φ89mm

Iift force : 18T

Weight : 5.5T

Diesel engine power : Xidong 65 kW

Dimension : 4400x2150x2200mm

Contact Now

ST-200 Water Well Drilling Rig

High-Efficiency Drilling Solution

The ST-200 is a powerful tire-type water well drilling rig designed for professional drilling operations with maximum efficiency and durability. This versatile rig supports both mud pump drilling and air compressor drilling methods.

Key Specifications

Attribute	Value
Drilling Method	Mud pump drilling and air compressor drilling
Drilling Diameter	Φ105-Φ350mm
Drilling Depth	200m
One Push Length	3M
Drilling Pipe Diameter	Φ76mm, Φ89mm
Lift Force	18T
Weight	5.5T
Engine Power	Xidong 65 kW
Dimensions	4400×2150×2200mm

Performance & Durability

The service life of the ST-200 pneumatic water well drilling rig typically ranges between 8-15 years, depending on operating conditions and maintenance practices. Key factors affecting longevity include:

Working Environment: Harsh conditions (high temperature, humidity, dust, or corrosive environments) may reduce lifespan by 3-5 years
Maintenance: Regular maintenance can extend service life to 12-15 years or more
Operation: Proper use and timely replacement of vulnerable parts are crucial for longevity

Technical Parameters

Model	Shitan ST 200
Max Drilling Depth	200m
Drilling Diameter	105-350mm (Large drilling diameter)
Air Pressure	1.2-3.5 Mpa
Rod Length	3m
Rod Diameter	76-89mm
Main Shaft Pressure	4T
Lifting Force	18T
Power Head Stroke	40m
Max Rotary Torque	5900 Nm
Max Rotary Speed	30-120 r/min (Fast rotation speed)
Secondary Winch Lifting Force	1T
Jacks Stroke	1.35m
Moving Speed	2.5 km/h
Uphill Angle	21°
Weight	5.5T
Engine	Xidong 65kw (Strong power)
Overall Dimensions	4400×2150×2200mm
Working Condition	Loose layer and bedrock

Maintenance Guidelines

Daily Maintenance

Clean equipment surfaces thoroughly after each use
Inspect and tighten all connections, especially drill rod joints
Lubricate all moving parts according to manufacturer specifications

Regular Maintenance

Replace air filters every 200-300 working hours
Replace oil and fuel filters every 500-600 working hours
Inspect vulnerable components monthly using precision measuring tools
Maintain air compressor by draining moisture and checking belt tension

Special Maintenance

For long-term storage: Clean thoroughly, apply rust-proof oil, and store indoors
After harsh environment use: Perform deep cleaning and corrosion protection

Product Images

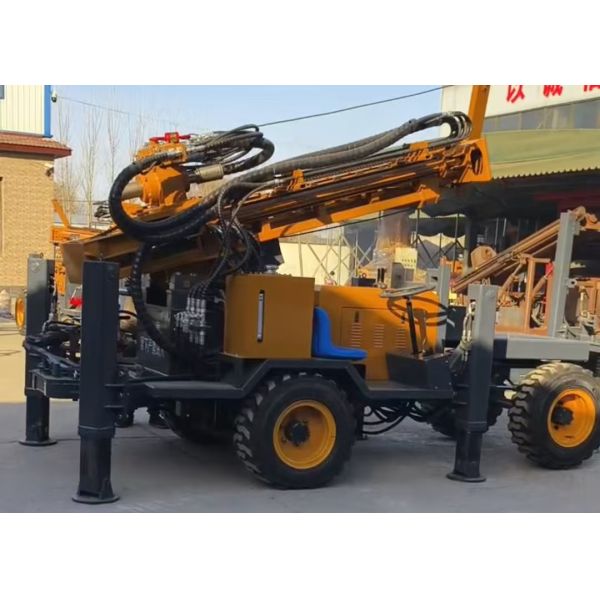

Powerful ST-200 Water Well Drilling Rig With High Efficiency
