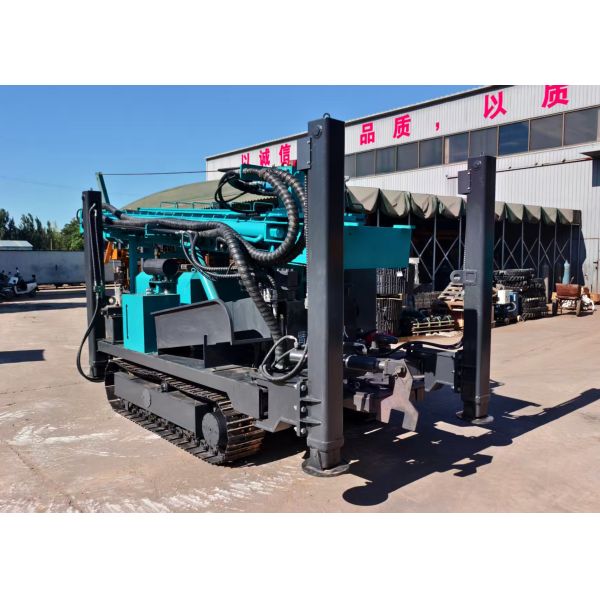

Strong Applicability Gas Drilling Machine Safer And More Reliable

  • 1
  • 2

Brand Name : Shitan

Model Number : ST-350

Place of Origin : Jinzhou,China

MOQ : 1

Payment Terms : T/T,Western Union

Supply Ability : 10000

Delivery Time : 10-15days

Product Name : Pneumatic Water Well Borehole Machine

Drilling Rod Diameter : 76-102mm

Drilling Hole Diameter : 105-350 Mm

Maximum Turning Torque : 8900/NM

Fast Lifting Speed : 0-20 M/min

Drilling Rig Size : 5.2*2*2.35M

Optional accessories : Yuchai: 91 KW (four Cylinder)

Contact Now

Pneumatic Water Well Borehole Machine
Gas drilling machine with strong applicability, offering enhanced safety and reliability for demanding operations.
Key Specifications
Drilling Rod Diameter 76-102mm
Drilling Hole Diameter 105-350mm
Maximum Turning Torque 8900/NM
Fast Lifting Speed 0-20 M/min
Drilling Rig Size 5.2*2*2.35M
Optional accessories Yuchai: 91 KW (four Cylinder)
Product Overview
The pneumatic 350 drilling rig serves as core equipment for drilling small and medium-sized hard materials, featuring four key characteristics: high efficiency, flexibility, safety, and economy. Its combination of efficient power, scene adaptation, safety durability, and cost advantages makes it the preferred choice for mining, geological exploration, and construction applications.
Technical Parameters
Drilling Depth 350m
Drilling Hole Diameter 105-305mm
Working wind pressure 1.25-3.5Mpa
Gas consumption 16-55m³/min
Drill pipe length 6m
Drill pipe diameter 89mm
Axial pressure 4T
Lifting force 24T
Lifting speed 20m/min
Fast forward speed 40m/min
Maximum turning torque 8900/NM
Maximum rotation speed 85/170r/min
Lifting force of small auxiliary winch 1.2T
High leg travel 1.35m
Footage efficiency 10-35m/h
Walking speed 2.5km/h
Climbing degree 30°
Weight 9T
Overall dimension 5.2*2*2.35M
Adaptive conditions Loose layer and bedrock
Engine Yuchai 91KW
Operation Procedures
Preparation Before Operation
  • Equipment inspection: Confirm drill rod and bit are securely installed without bending or wear; check tracheal connections for leaks; add sufficient lubricating oil.
  • Gas source debugging: Connect air compressor, adjust pressure to 0.4-0.63MPa, discharge accumulated water, ensure clean and dry gas source.
  • Environment and protection: Clear work surface obstacles; operators must wear safety helmets, goggles, and non-slip gloves.
Startup and Drilling Operations
  • Start the drilling rig: Slowly open air supply valve, let rig idle for 10-20 seconds, check for smooth operation without abnormal noise.
  • Start drilling: Align drill bit with hole position, apply pushing force gradually, adjust speed based on material hardness.
  • Process monitoring: Maintain vertical drilling direction; if stuck, reduce thrust and speed, reverse operation before re-drilling.
Shutdown and Closing
  • Shutdown steps: Reduce thrust, close air source valve, wait for rig to stop, remove drill rod and bit, clean surface dust.
  • Equipment maintenance: Discharge residual air, check for loose or damaged components, store in dry place.
Product Images
Strong Applicability Gas Drilling Machine Safer And More Reliable
Strong Applicability Gas Drilling Machine Safer And More Reliable
Strong Applicability Gas Drilling Machine Safer And More Reliable
Strong Applicability Gas Drilling Machine Safer And More Reliable
Strong Applicability Gas Drilling Machine Safer And More Reliable
Strong Applicability Gas Drilling Machine Safer And More Reliable
