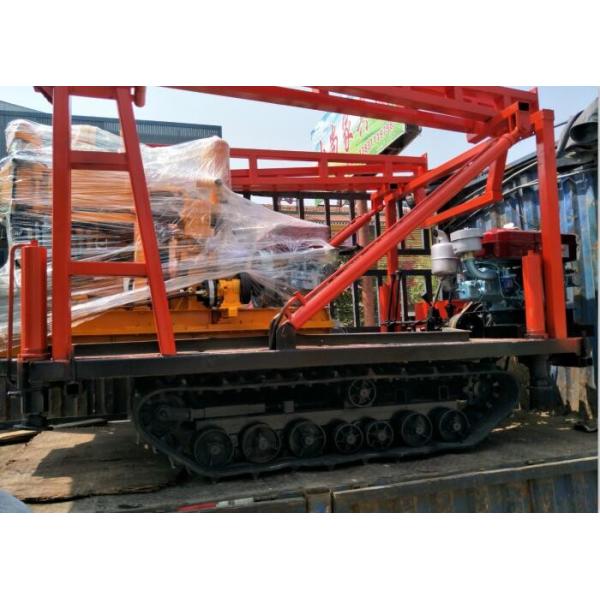

Rubber Track 400M 10T Crawler Mounted Drill Rig
Product Specifications
| Attribute |
Value |
| Type |
Crawler Mounted Drill Rig |
| Feature |
Multifunctional |
| Voltage |
Customized |
| Application |
Water Wells |
| Total weight |
5.8T-10T |
| External dimension |
140-305 mm |
Water Wells Medium Deep Hole Hydraulic Water Well Drill
High-performance crawler mounted drill rig designed for efficient water well drilling operations.
Technical Specifications
| Specification |
200M Air Hole Well Drilling Rig |
300M Air Hole Well Drilling Rig |
400M Air Hole Well Drilling Rig |
| Total weight |
5.8t |
9t |
10t |
| External dimension |
140-305 mm |
140-325 mm |
140-350 mm |
| Drilling depth |
200m |
300m |
400m |
| One time propulsion length |
3.4m |
6.6m |
6.6m |
| Walking speed |
2.5 Km/h |
2.5 Km/h |
2.5 Km/h |
| Climbing ability |
30 Max |
30 Max |
30 Max |
| Main engine power |
65-70 KW |
84 KW |
92 KW |
| Working pressure |
1.7-3.0 Mpa |
1.7-3.3 Mpa |
1.7-3.5 Mpa |
| Air consumption |
17-30 m/min |
17-35 m/min |
17-35 m/min |
| Drill pipe diameter |
76 mm, 89 mm |
89 mm, 102 mm |
89 mm, 102 mm, 108 mm |
| Drill pipe length |
1.5 m, 2.0m, 3.0m |
1.5m, 20m, 30m, 6.0m |
1.5m, 20m, 3.0m, 6.0m |
| Lifting power |
12t |
20t |
22t |
| Rotation speed |
45-70 rpm |
55-115 rpm |
55-115 rpm |
| Slewing torque |
3500-4800 N.m |
6200-8500 N.m |
6200-8500 Nm |
| Dimensions |
4000*1750*2450 mm |
5900*2000*2850 mm |
5900*2100*2850 mm |
Key Advantages
- Automatic telescopic drilling tower with hydraulic control system for easy operation
- Rubber track chassis for reduced noise, vibration, and fuel consumption
- Four threaded outriggers for quick installation and stable operation
- 48V electric starting diesel engine for reduced operator fatigue
- Equipped with BW-160 mud pump for high flow and pressure performance
Why Choose Our Product
- Sincerity: Honest product descriptions and transparent business practices
- Quality: Manufacturer-direct products with original factory quality assurance
- Specialized: Professional pre-sales support with quick response times
- Warranty: 6-month hydraulic system warranty, 1-year structural warranty
- Support: 360-day product warranty with lifelong maintenance services
Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：
Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter
OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
