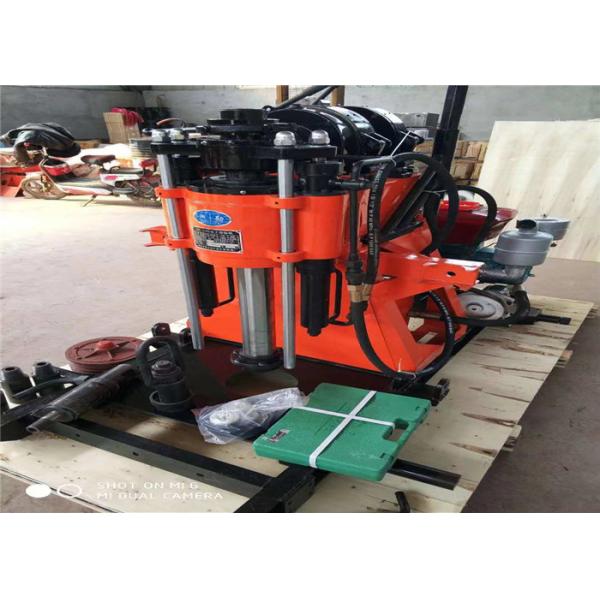

ISO Horizontal 150m Water Well Drilling Rig Machine

  • 1
  • 2

Brand Name : ShiTan

Model Number : ST150

Certification : ISO9001

Place of Origin : China

MOQ : 1setr

Price : USD3000-3600/SET

Payment Terms : L/C, T/T, Western Union, MoneyGram ,CASH

Supply Ability : 2500SETS/YEAR

Delivery Time : 10 DAYS AFTER PREPAID

Packaging Details : Plastic film and Standard export wooden box

Usage : geological exploration

Drilling depth : 150M

Sprindle speed : 142/285/570r/min v

Maximum open hole diameter : 110mm

machine dimensions : 1640*1030*1440

weight : 500kg

Contact Now

Geological Exploration Water Well Drilling Rig , Portable Core Drill Rig

1 Drilling rig introduction

Usage of Water Well Core Drilling Rig

GT-200 is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.

2 Technical specification

ST-200 Type
Drill Swivel Head

Drilling depth

 Max.150m

Spindle speed

(4-speed)

115 230 505 1010r/m

Hole diameter

 Max.220m Spindle stroke 450kmm
Drill rod diameter 57mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 15KN Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 16.2KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1730*860*1360mm

Advantages of Water Well Core Drilling Rig as below

★ Hydraulic feeding mechanism can improve drilling efficient,reducing labor work
★ The rig equipped with a ball on a cassette holding mechanism and a six driving drill pipe.double guide,the drilling rod can be replaced without shutdown ------------high efficient,convenient operation,safe and reliable
★ Equipped with hole bottom pressure indicator, you can know the situation inside the hole
★ Handle centered ,convenient operation
★ The drilling machine has the advantage of compact structure,small volume, light weight,convenient move, suit for mountain and plain areas.
★ Adopting large drive pipe,double guide rod, increase the steady
Diesel engine or Electrical motor.

We can provide:

1. Test Report & MTC

2. Ready stock for normal sizes

3. Customized sizes welcomed

4. One stop service

ISO Horizontal 150m Water Well Drilling Rig Machine

ISO Horizontal 150m Water Well Drilling Rig Machine

ISO Horizontal 150m Water Well Drilling Rig Machine
